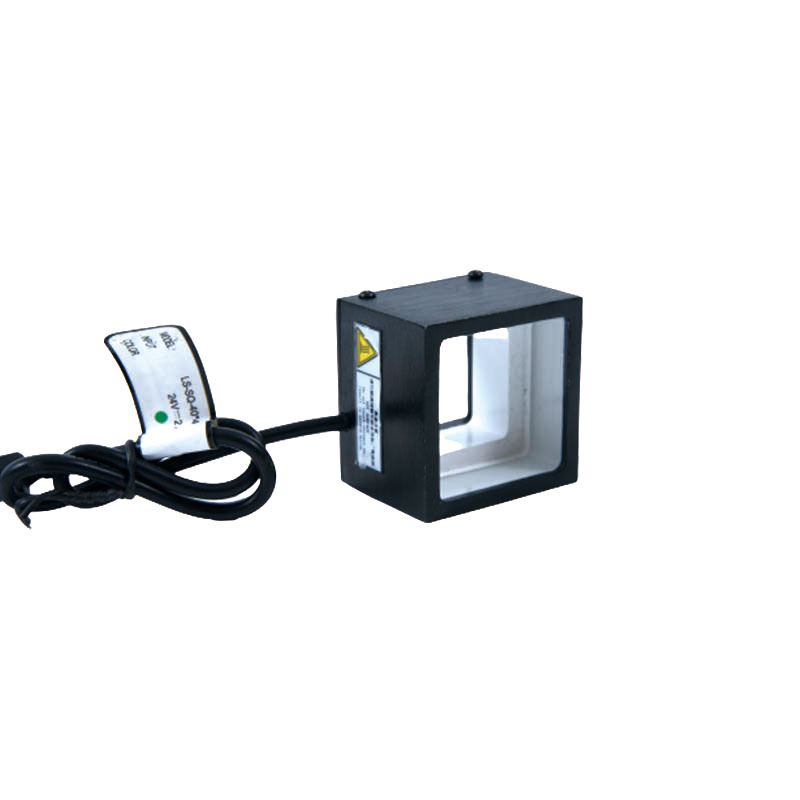

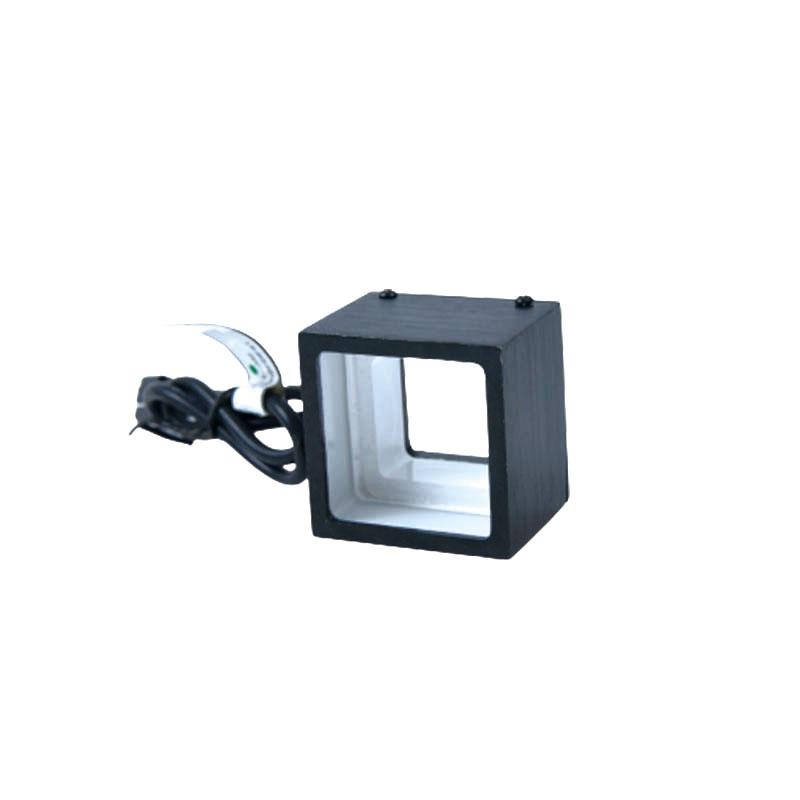

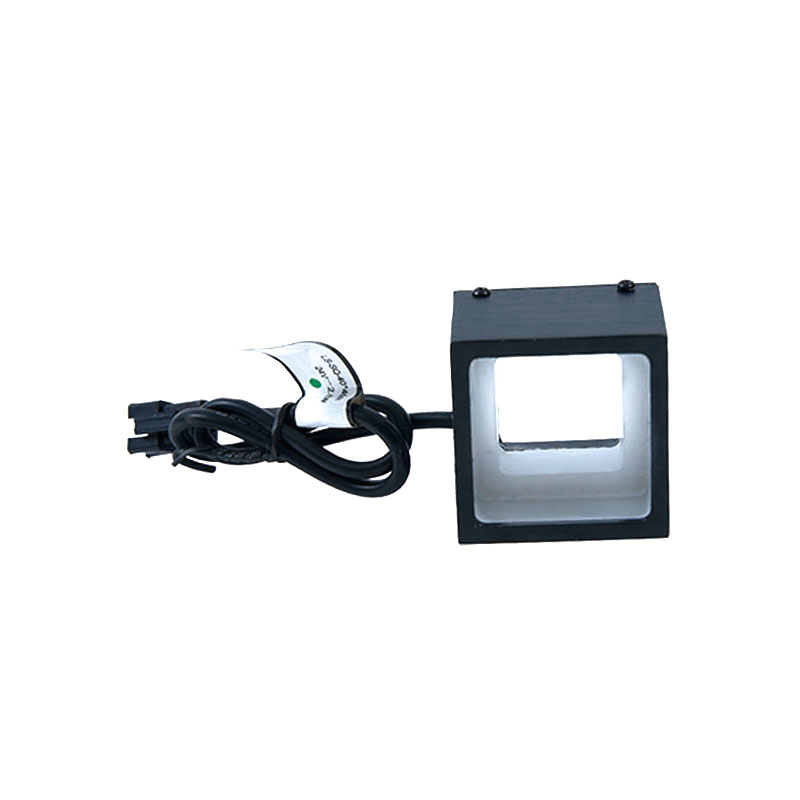

Low-angle Square Lights (59-SQ)

It is a low angle light unit with a square case.

1.Product features

The special square structure of the SQ series enables the light from the LEDs even and uniform and illuminated from four directions on a square object from a low angle. It can detect the outline for corners and prevents glare which are difficult with ring lights. It is perfect for square object.

2.Configuration example

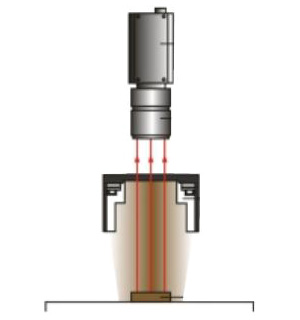

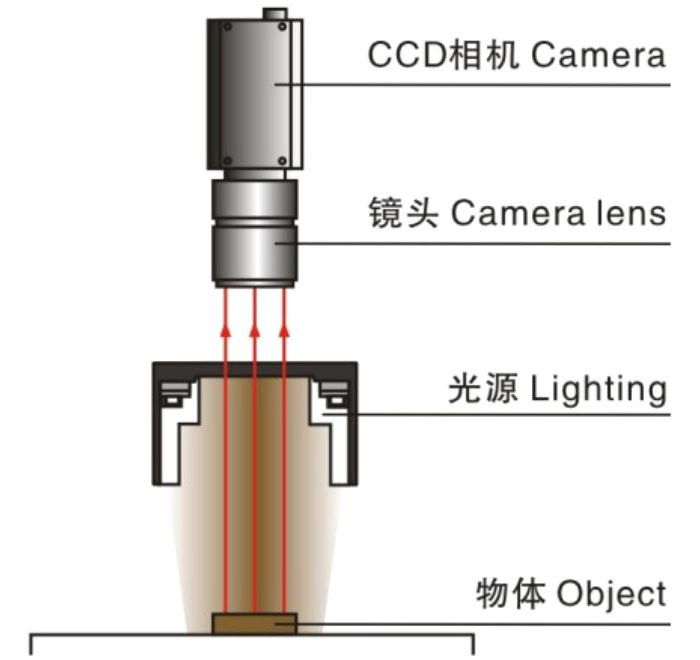

The CCD camera is placed above the camera hole of the light to capture the characteristics of the object0



* This picture is shown as a sketch only.

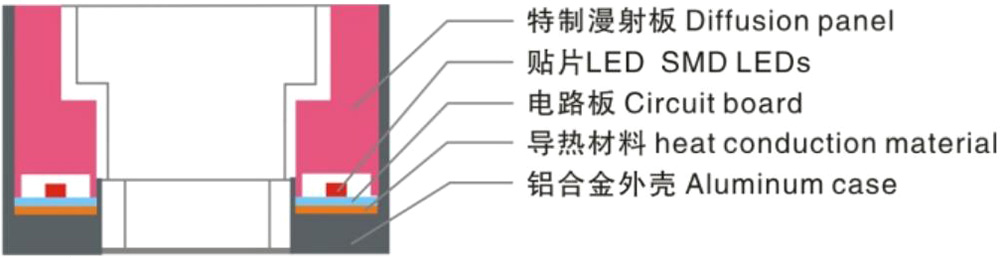

Sectional view of a square light

Configuration example

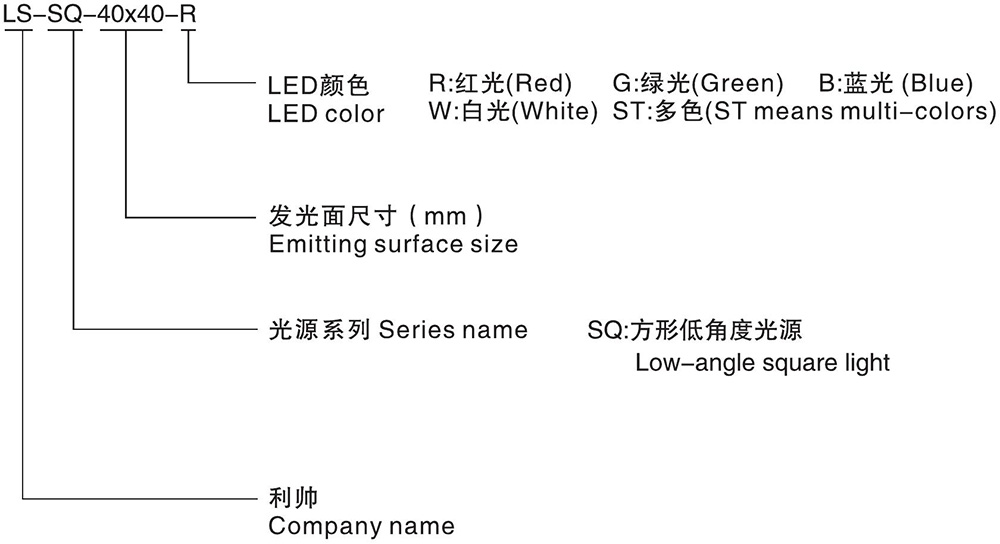

3.Model name explaination

4.Product list

***Subject to actual product***

5.Applications

1.Inspecting characters and logos on printings

2. Inspecting BGA solder joint

3.Inspecting scratch on the surface of metal part

4.Inspecting components on integrated circuit

5.Inspecting the surface of paper box



6.Application example

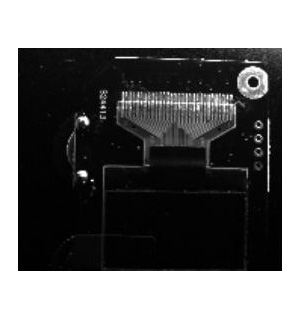

PCB registration solder joint inspection

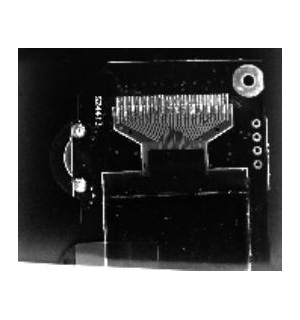

Measured object	Configuration	Effect image

7.Service

8.Spectrum, uniformity

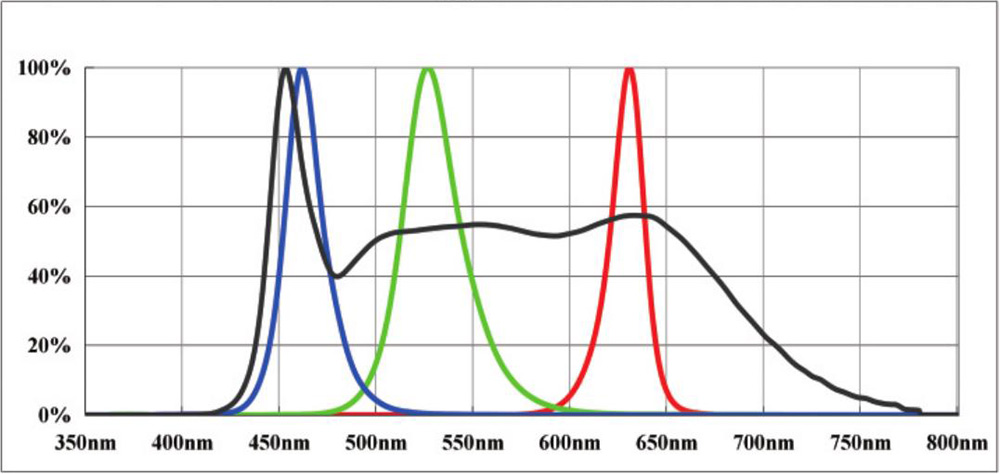

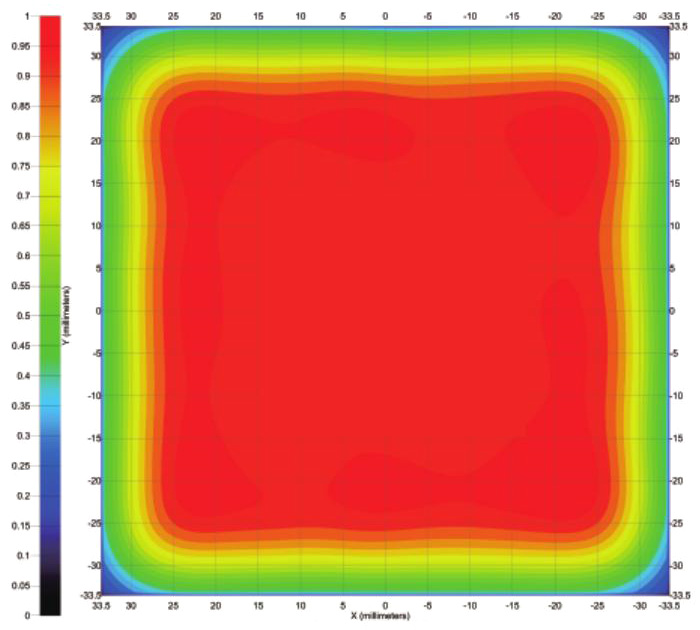

Spectrum	Uniformity(LS-SQ-40×40)

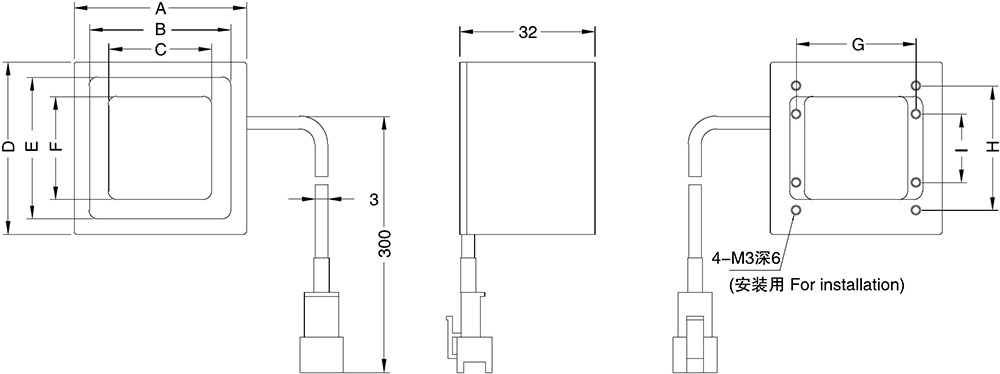

9. Dimensions(mm)
