Customized Lights-Yuyao Lishuai Machine VISION Technology Co., Ltd

Customized Lights

Yuyao Lishuai Machine VISION Technology Co., Ltd

1.Model name explaination

2.Product list

Model name	Wavelength	Voltage	Power	Weight	Output connector
LS-SLS-BK200×200UV	368nm	24V constant -voltage	30W	1.0kg	SM 2.54 3Pin
LS-SLS-SL200×34UV	368nm		10W	0.3kg
LS-SLS-C188ST	400-1000nm		29W	0.6kg
LS-SLS-C188-RGBW	630nm、525nm、 470nm、5600K	3V constant -voltage	3W	1.4kg
LS-SLS-BK57×31×20	5000K	24V constant -voltage	20W	0.1kg
LS-SLS-PL381×301ST	5500K、625nm、 585nm、460nm		40W	1.2kg
LS-SLS-BK395×20ST	5500K、625nm、 585nm、460nm		30W	1.1kg

***Subject to actual product***

3.Service

Color temperature/ Peak wavelength	360nm～1100nm (Full wavelength range can be customized )
Operating temperature and humidity	a.Temperature 0-40°C
	b.Humidity: 20%-85% (with no condensation)
Service life	Lighting decay 5% per 30,000hrs
Accessories	a.Extension cable	b.Control unit
Customization	a.Customizing emitting surface size and dimension
	b.Customizing color temperature, peak wavelength, coordinates, spectrum
	c.Customizing intensity
	d.Personalized customization
	e.Customizing output connector, input voltage, drive mode.
	f.Customizing uniformity
	g.Customizing mounting ways
Warranty	One year product warranty and provide technical support

4.Dimensions(mm)*

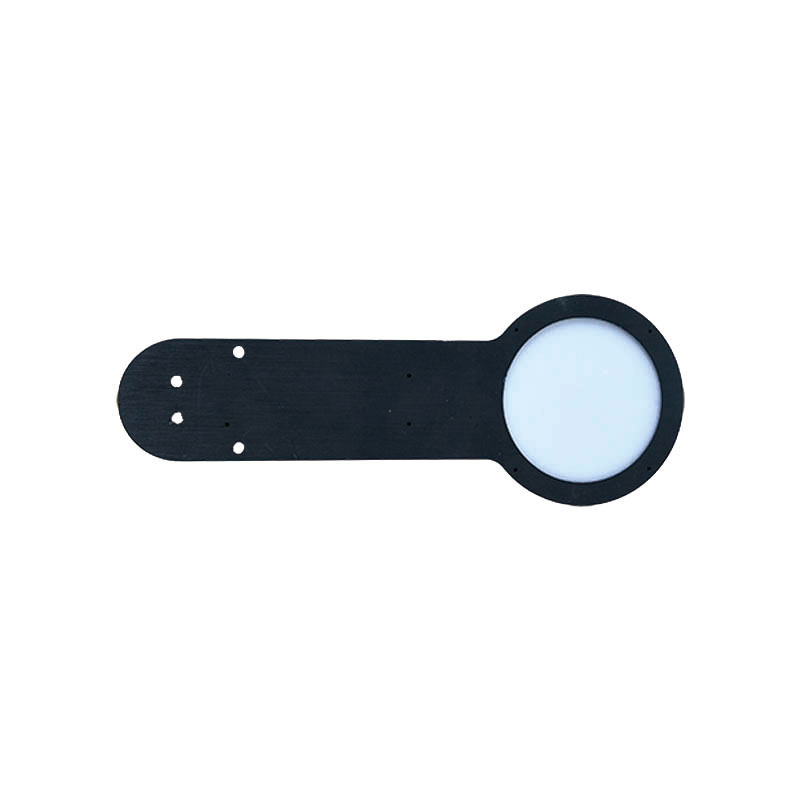

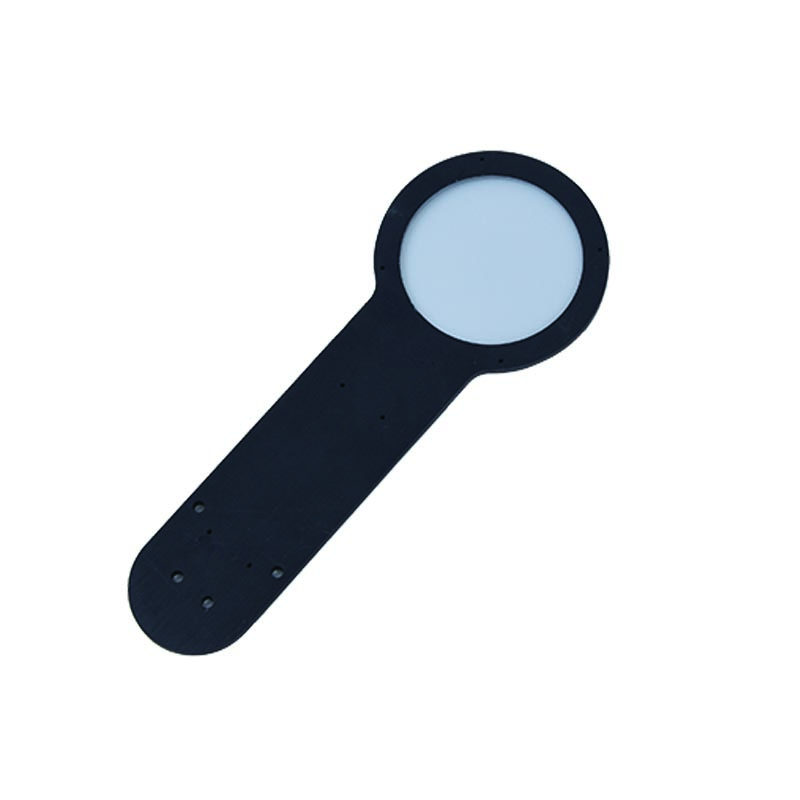

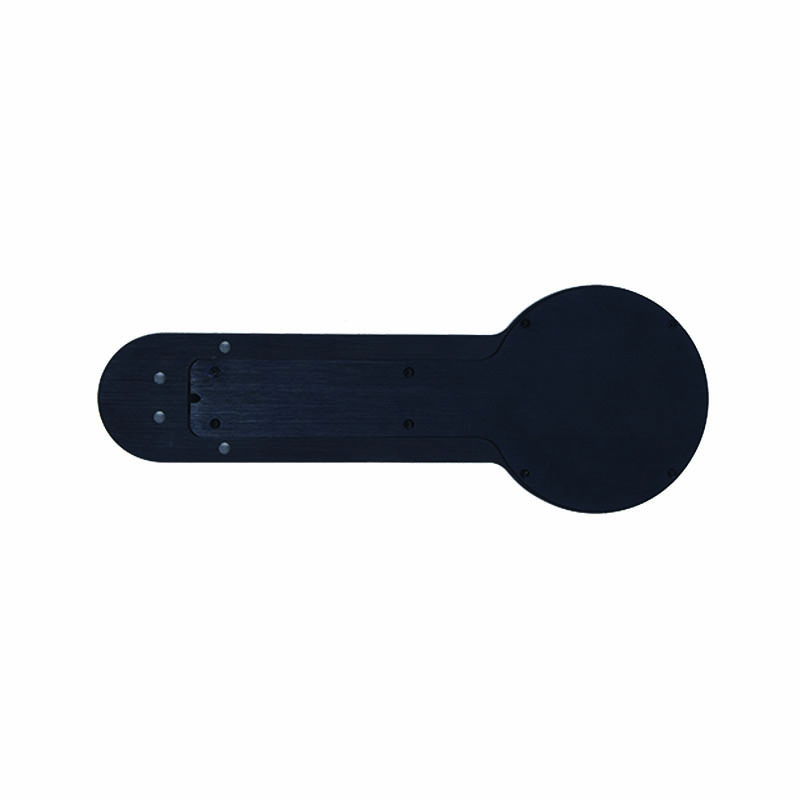

This series of light is equipped with a dedicated camera hoop, which can be directly fixed on the camera to form parallel light, including 400nm-1 000nm spectrum.

This series of light integrates four kinds of LEDs, 630nm, 525nm, 470nm and 5600K, which can emit light independently. The uniformity of the spot irradiated by the special lens is as high as 99% within a distance of 30mm

This series of light integrates four kinds of LEDs, 625nm, 585nm, 460nm and 5500K, which can emit light independently. Among them, the two lights of 381x301 are added with a translucent grey plate on the surface and the surface shows a black background color when the light doesn't emit light.

Machine vision customization expert

Yuyao Lishuai Machine VISION Technology Co., Ltdis a professional company specializing in the research and development of general intelligent high-speed machine vision platforms and the production of parts. And perfect solution.
