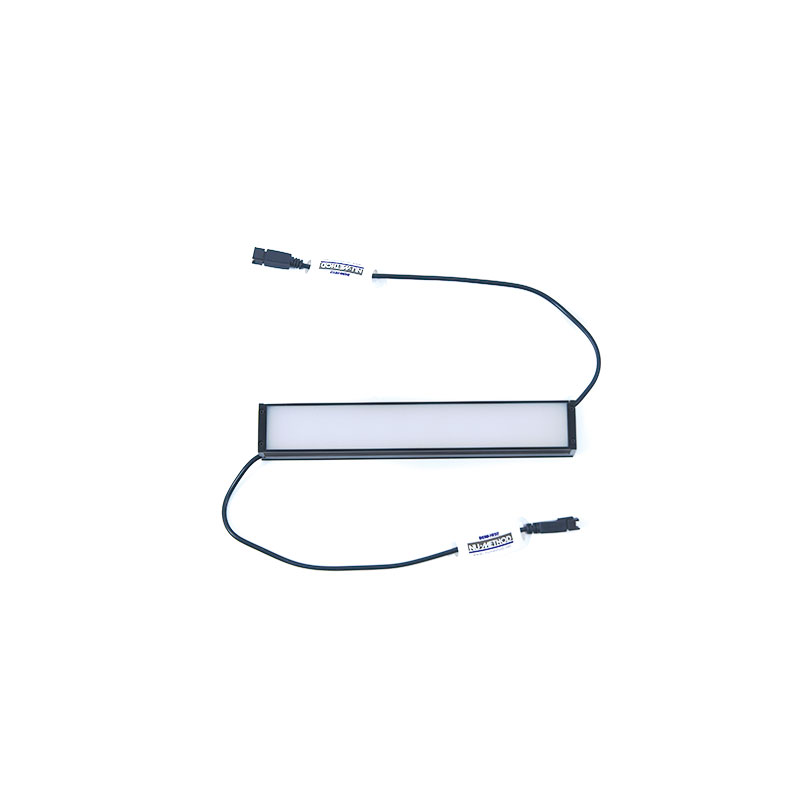

Bar Lights (SLC-3)

Ultra-bright SMD LED is used for diffusion light at a large angle. The diffusion strip is optional to make the light softer.

1. Product features

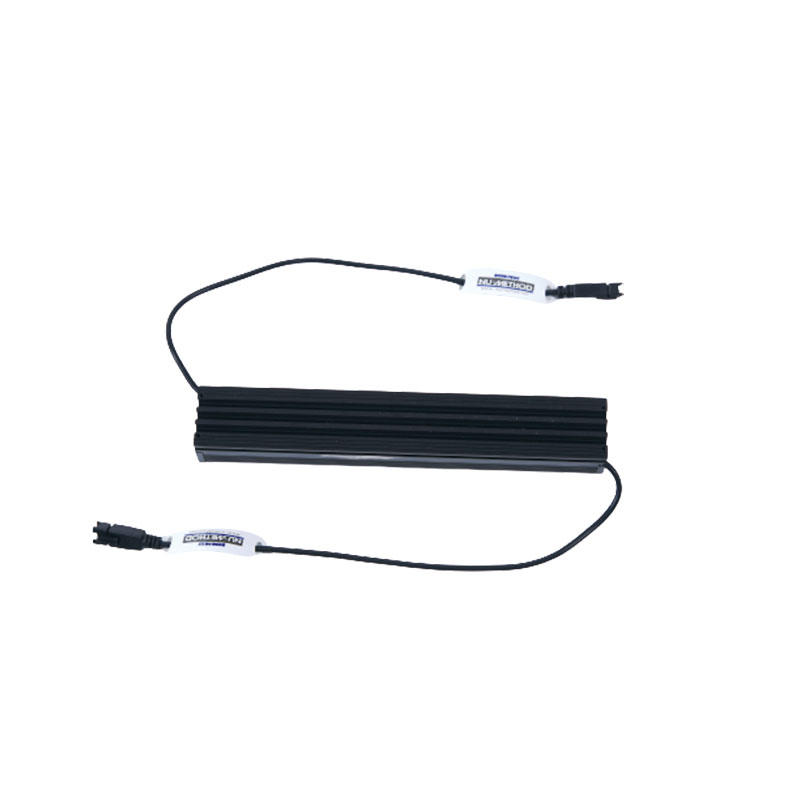

SL series light is a large-angle diffusion light. The aluminum sections is convenient for LED heat dissipation. Different sizes, different color temperature/wavelength can be selected. The back groove is convenient for installation. According to the characteristics of the measure object, a light group can be established and the beam angle can be adjusted.



2.Configuration example

The back groove is convenient for installation and it can be used to install and adjust the angle of the lights in different lengths, which is convenient for CCD to capture the characteristics of the object.

* This picture is shown as a sketch only.

Sectional view of a bar light

Configuration example

3.Model name explaination

4.Product list

Length increases in multiples of 50mm

***Subject to actual product***

5.Applications



1.Inspecting characters on printings

2.Inspecting electronic components

3.Inspecting household appliances

4.Inspecting printing on PCB

5.Inspecting characters on paper box

6.Application example



Barcode detection

Measured object	Configuration	Effect image

7.Service

8.Spectrum, uniformity

Spectrum	Uniformity（LS-SL-200×34）

9. Dimensions(mm)

***The size of the light source can be customized***
