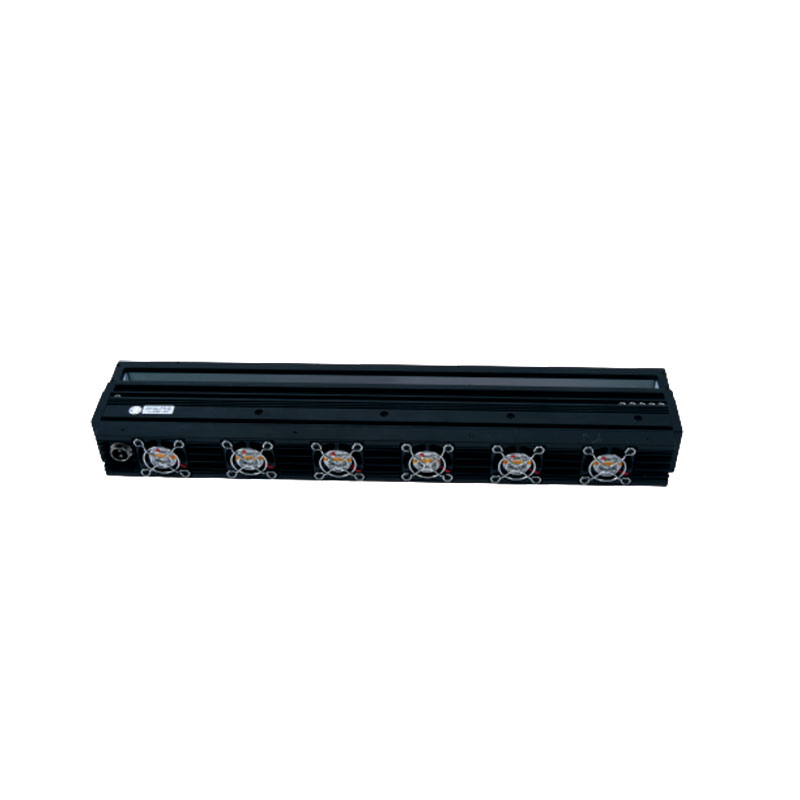

High Intensity Line Lights(66-LNA-450)

High uniformity, irradiating coaxial linear light.

1.Product features

The special cylindrical lens and coaxial structure of the LNA series light source gather the diffused light and then irradiate the linear light on the coaxial line with the camera. It is suitable for large printing inspection and large size positioning.

2.Configuration example

The CCD camera is placed on the reflected lighting outlet of the coaxial light, so that the reflected light is coaxial with the CCD camera to capture the characteristics of the object.

* This picture is shown as a sketch only.

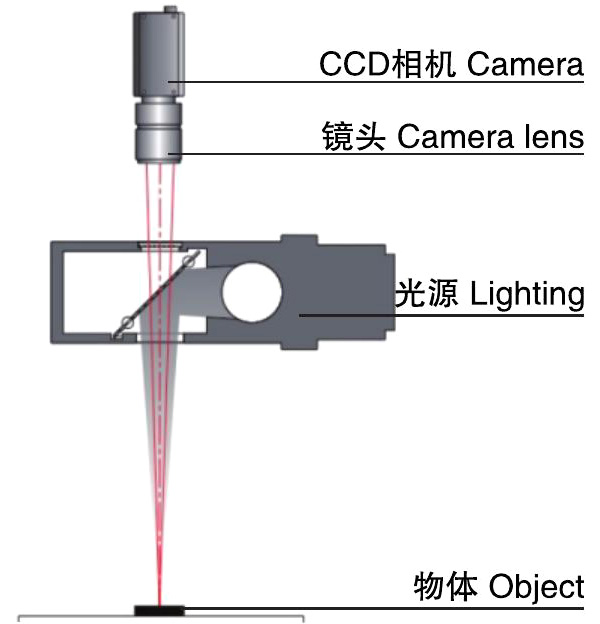

Sectional view of a line light

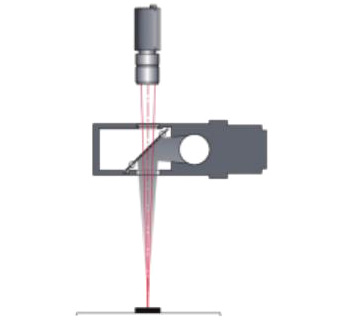

Configuration example

3.Model name explaination

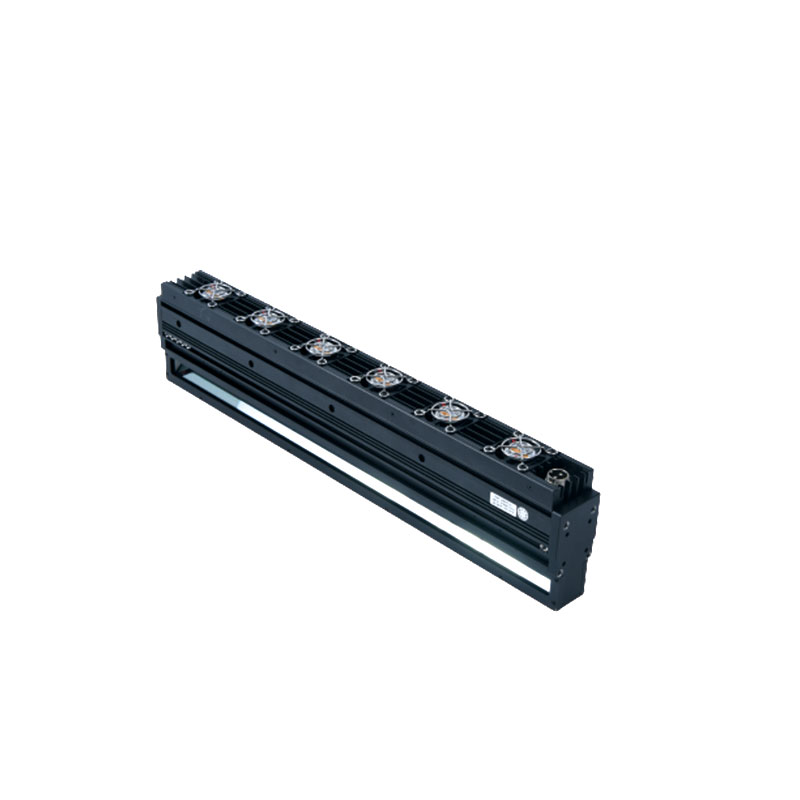

4.Product list

Length increases in multiples of 150mm

***Subject to actual product***

5.Applications

1.Steel plate defect detection

2.PCB board circuit inspection

3.LCD screen appearance inspection

6.Application example

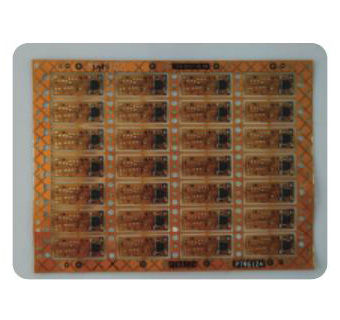

PCB board circuit inspection

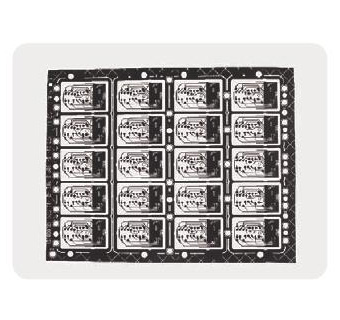

Measured object	Configuration	Effect image

7.Service

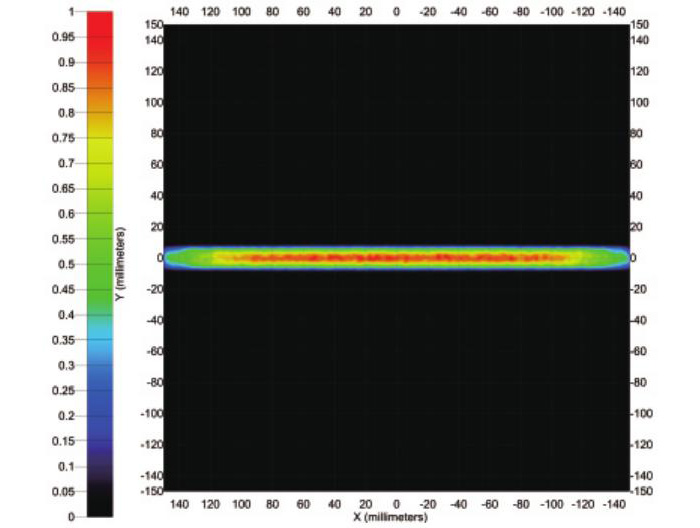

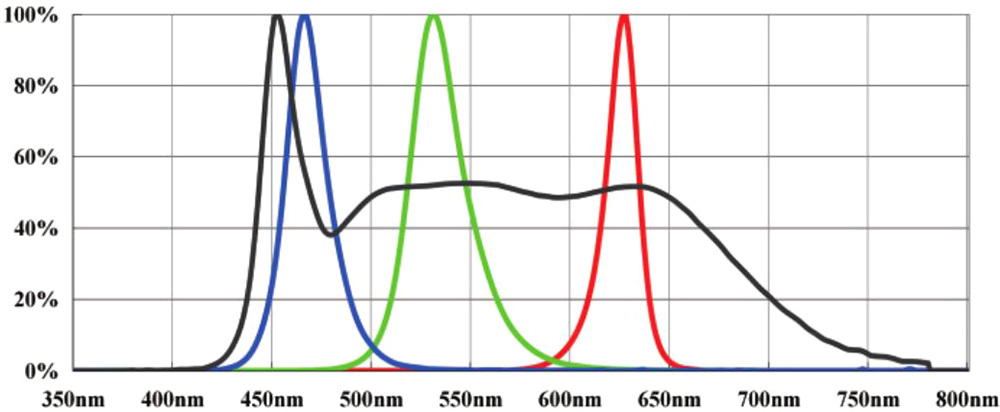

8.Spectrum, uniformity

Spectrum	Uniformity

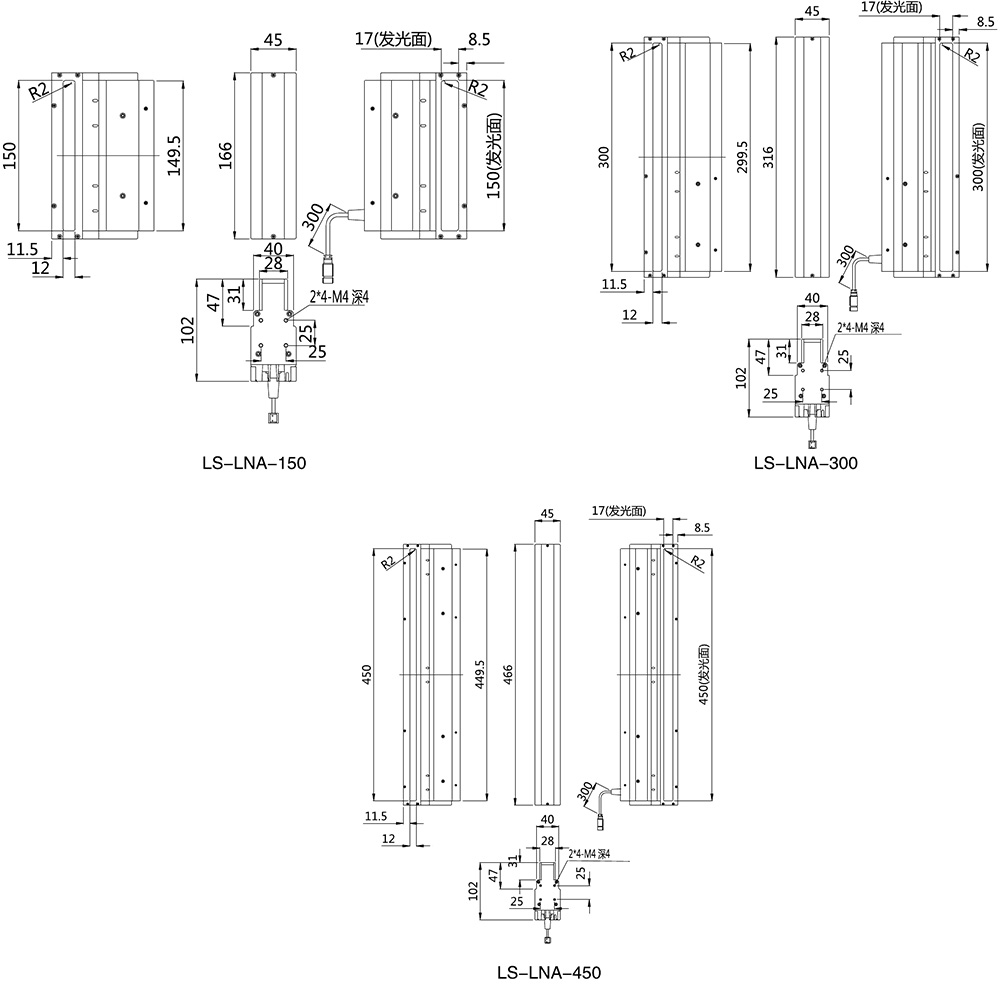

9. Dimensions(mm)
