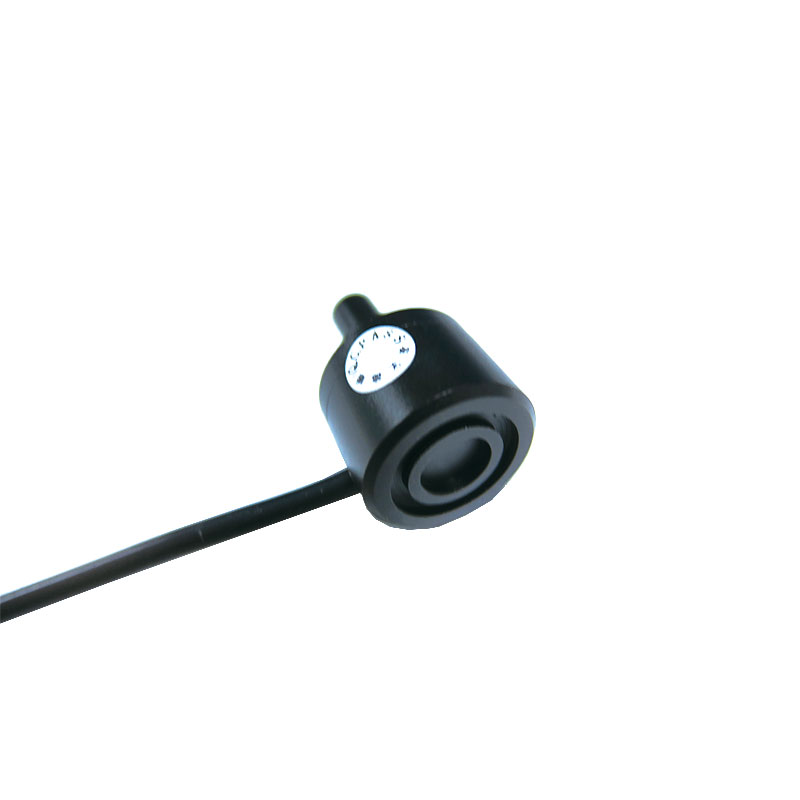

Spot Lights (HL)

Ultra-bright spot light.



1. Product features

The condensing technology of the HL series light makes it possible to irradiate high-intensity point light with a small light-emitting area, and can be used with a telecentric lens or a coaxial lens. The integral molding of aluminum alloy greatly improves the heat dissipation efficiency.


2.Configuration example

The diameter of the top end of the HL series light is 8mm or 9mm, and the diameter of the light-emitting surface is 6mm.

It can be used with a microscope lens or a telecentric lens with coaxial function.



* This picture is shown as a sketch only.

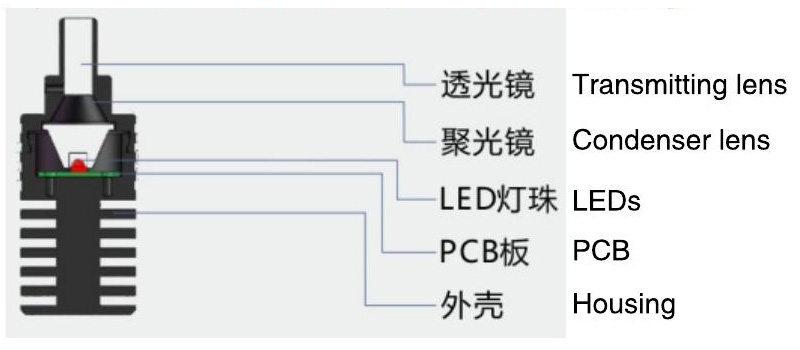

Sectional view of a spot light

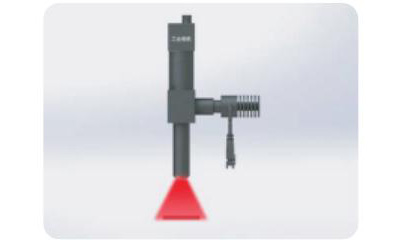

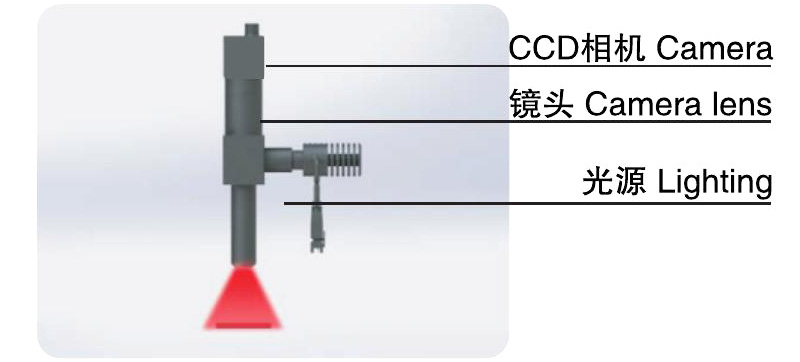

Configuration example

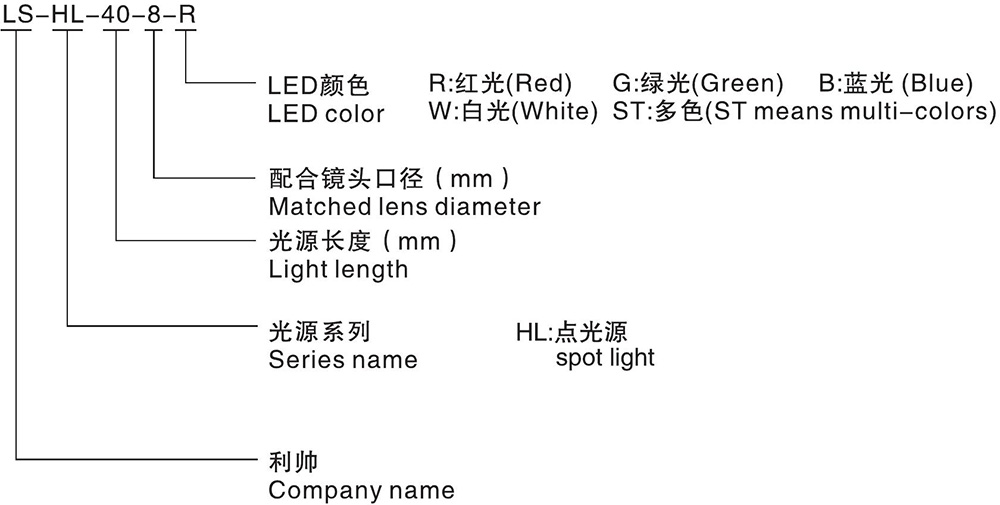

3.Model name explaination

4.Product list

***Subject to actual product***

5.Applications

1.Mark positioning

2.Using for LED die bonder

3.Inspecting LCD panel

4.Micro component inspection



6.Application example

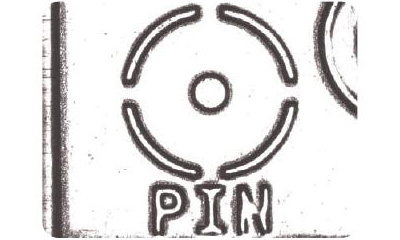

Mark point detection

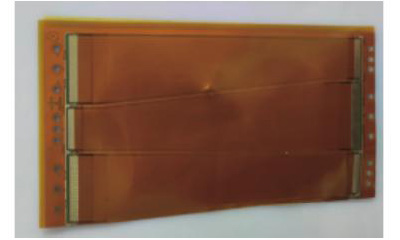

Measured object	Configuration	Effect image

7.Service

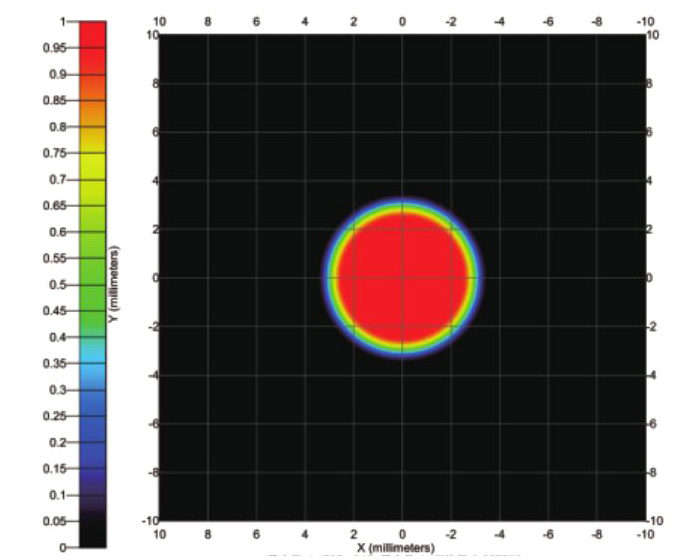

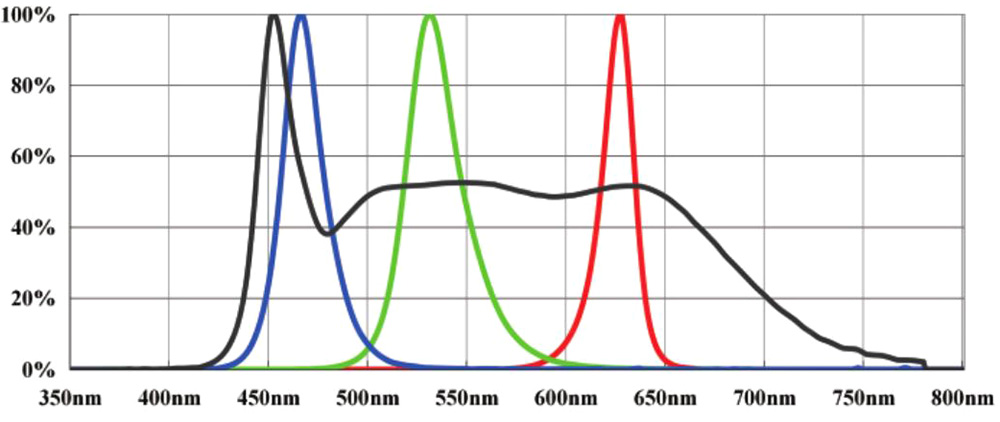

8.Spectrum, uniformity

Spectrum	Uniformity

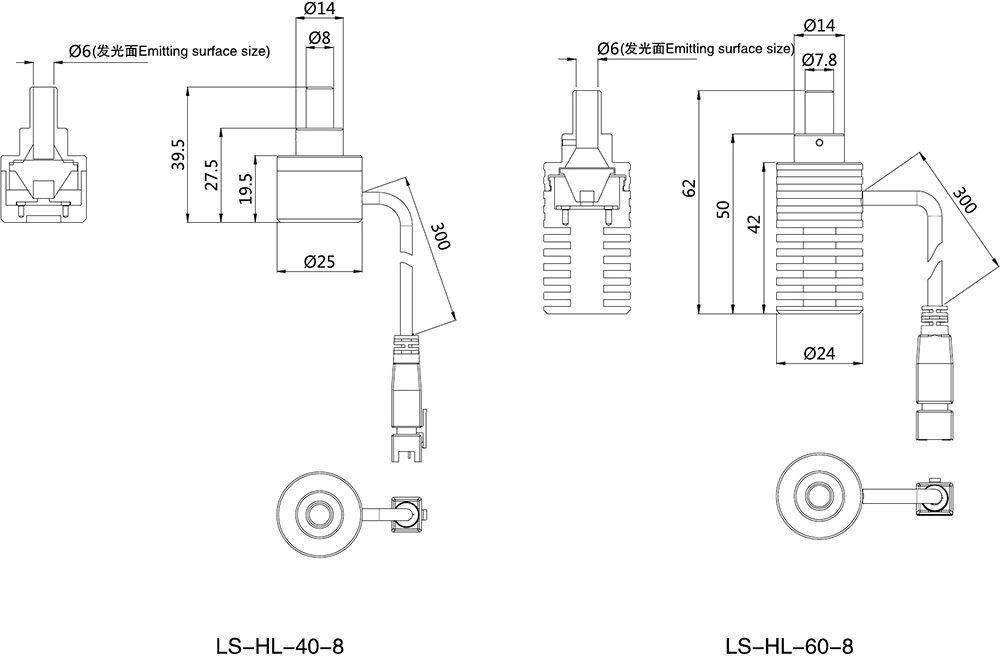

9. Dimensions(mm)
