Ring Lights (HDR-08)

Yuyao Lishuai Machine VISION Technology Co., Ltd

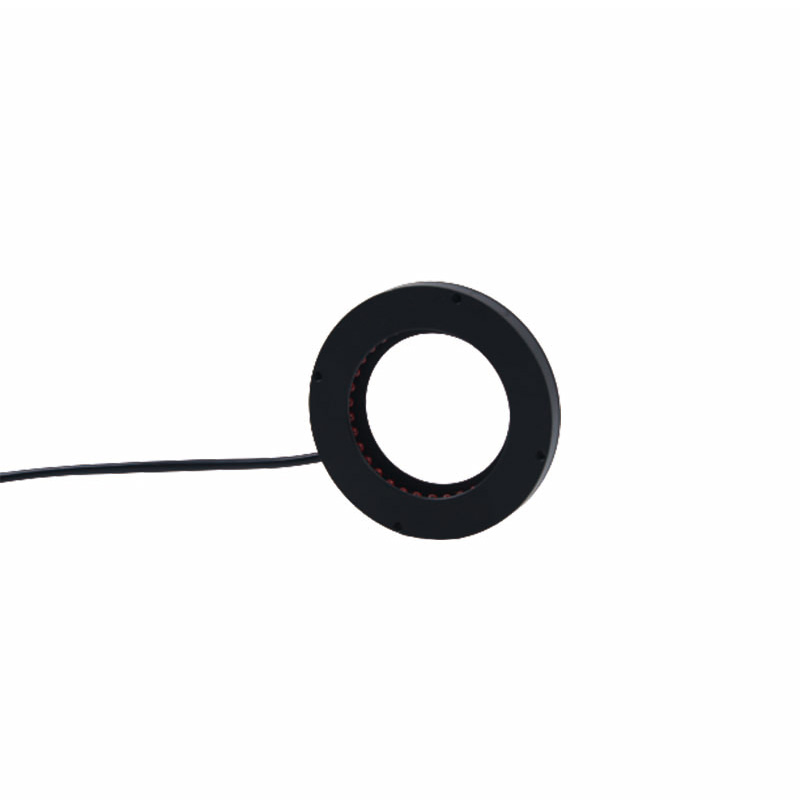

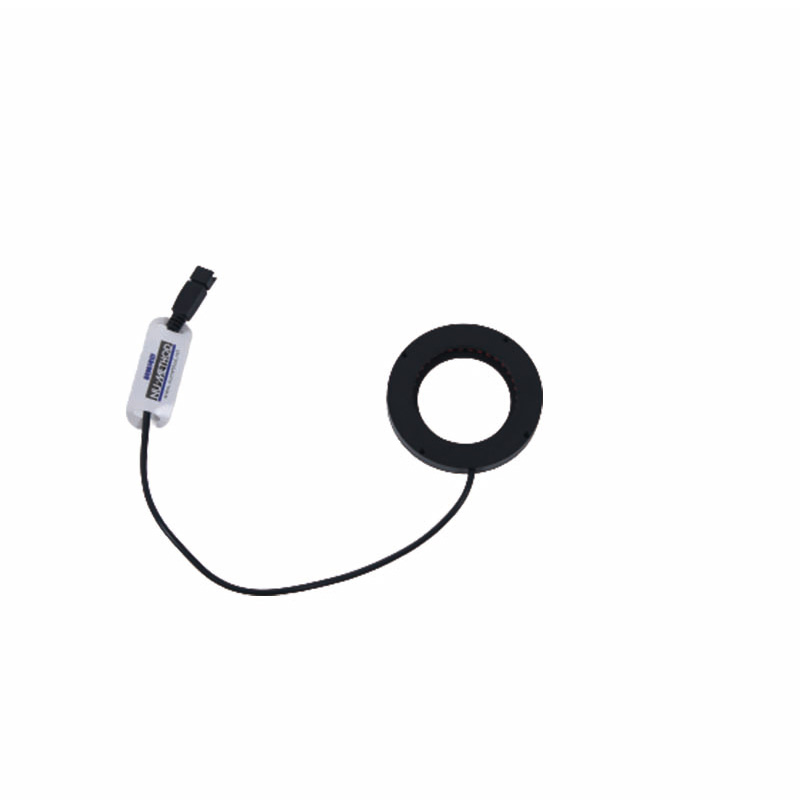

Ring light with different angles. Optional diffuser to make the light softer.

1.Product features

HDR series light uses ultra-thin flexible substrate with special structure. Use light of different sizes, angles, color temperature/wavelength can illuminate the object in all directions.

2.Configuration example

The CCD camera captures the characteristics of the measured object through the hole in the light.

*This picture is shown as a sketch only.

Sectional view of a ring light

Configuration example

3. Model name explaination

4.Product list

Model name	LED color	Angle	LED rows	Voltage	Power		Weight	Output connector
Model name	LED color	Angle	LED rows	Voltage	●IR	●●●	Weight	Output connector
LS-HDR-50-00	●●●●IR	0°	1	24V constant-voltage	1.5W	2W	0.1kg	SM 2.54 3Pin
LS-HDR-50-70	●●●●IR	70°	3		2W	2.5W	0.1kg
LS-HDR-75-00	●●●●IR	0°	1		2W	2.5W	0.1kg
LS-HDR-75-70	●●●●IR	70°	3		5W	6W	0.1kg
LS-HDR-75-90	●●●●IR	90°	2		5W	5W	0.1kg
LS-HDR-102-70	●●●●IR	70°	3		7W	8.5W	0.2kg
LS-HDR-120-60	●●●●IR	60°	3		10W	12W	0.2kg
LS-HDR-134-70	●●●●IR	70°	3		10W	12.5W	0.3kg
LS-HDR-134-90	●●●●IR	90°	2		11W	13W	0.3kg
LS-HDR-172-70	●●●●IR	70。	3		13W	16W	0.4kg
LS-HDR-210-70	●●●●IR	70°	3		17W	19.5W	0.4kg

***Subject to actual product***

5.Applications

1.Inspecting the appearance defect

2.Locating the edge of the hardware piece

3.Inspecting the appearance of workpiece

4.Inspecting electronic components

5.Inspecting printing on PCB

6.Application example

Inspecting the characters on coins


Measured object	Configuration	Effect image

7.Service

Color temperature/ Peak wavelength	●620nm-630nm ●460nm-475nm ●520nm-530nm
Color temperature/ Peak wavelength	●3200K-7000K IR750~950nm
Operating temperature and humidity	a.Temperature 0-40°C
Operating temperature and humidity	b.Humidity: 20%-85% (with no condensation)
Service life	Lighting decay 5% per 30,000hrs
Accessories	a.Extension cable
	b.Constant-voltage control unit
	c.Diffusion plate
Customization	a.Customizing emitting surface size and dimension
	b.Customizing color temperature, illuminance, peak wavelength
	c.Customizing LED rows
	d.Customizing output connector, input voltage, drive mode.
	e.Customizing LED rows
	f.Customizing bi-color or multiple combined lights
Warranty	One year product warranty and provide technical support

8.Spectrum, uniformity

Spectrum	Uniformity（LS-HDR-134）

9. Dimensions(mm)

Model name	Unit(mm)
	Frame size(±1mm)	Emitting surface size(±1mm)	安装孔(±1mm)	相机孔(± 1mm)
	A	B	C	D
LS-HDR-50-70	Φ50	Φ36	Φ31	Φ20
LS-HDR-75-70	Φ75	Φ62	Φ56	Φ45
LS-HDR-102-70	Φ102	Φ88	Φ82	Φ70
LS-HDR-134-70	Φ134	Φ120	Φ114	Φ96
LS-HDR-172-70	Φ172	Φ158	Φ151	Φ134
LS-HDR-210-70	Φ210	Φ196	Φ188	Φ174

Model name	Unit（mm )
	Frame size(± 1mm)	Emitting surface size (± 1mm)	Mounting hole(± 1mm)	Camera hole(± 1mm)
	A	B	C	D
LS-HDR-50-00	Φ50	Φ25	Φ45.7	Φ20
LS-HDR-75-00	Φ75	Φ50	Φ71.7	Φ45

Model name	Unit（mm )
	Frame size(± 1mm)	Emittinq surface size(± 1mm)	Mounting hole(±1mm)	Camera hole(± 1mm)
	A	B	C	D
LS-HDR-120-60	Φ120	Φ108	Φ110	Φ72

Model name	Unit（mm)
	Frame size (± 1mm)	Emitting surface size(± 1mm)	Mounting hole(±1mm)	Camera hole(± 1mm)
	A	B	C	D
LS-HDR-75-90	Φ75	Φ69	Φ60	Φ45
LS-HDR-134-90	Φ134	Φ127	Φ115	Φ96

***The size of the light source can be customized***
