Dome Lights (22-HBD)

Yuyao Lishuai Machine VISION Technology Co., Ltd

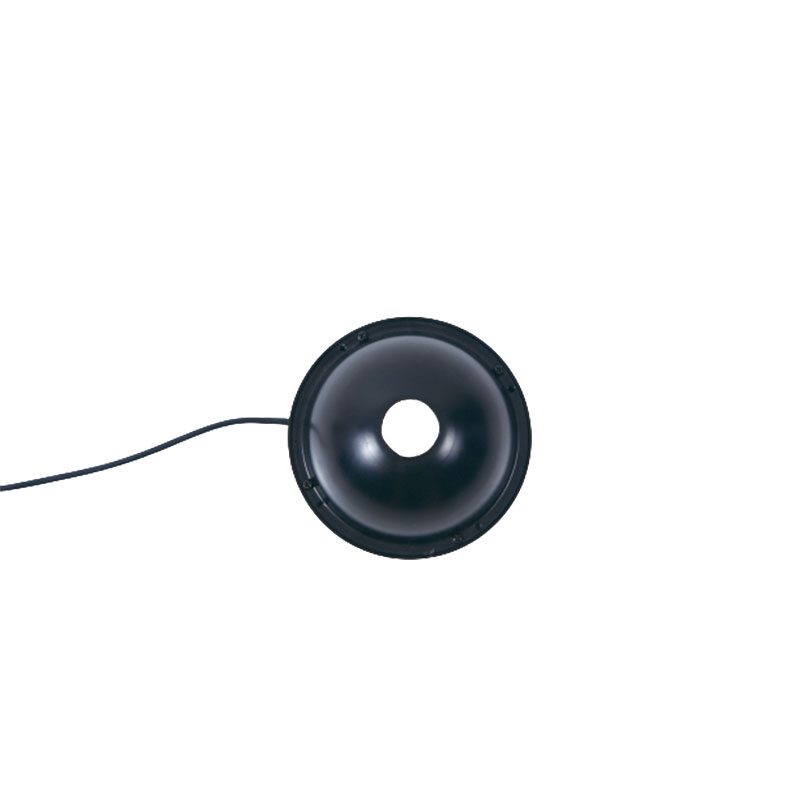

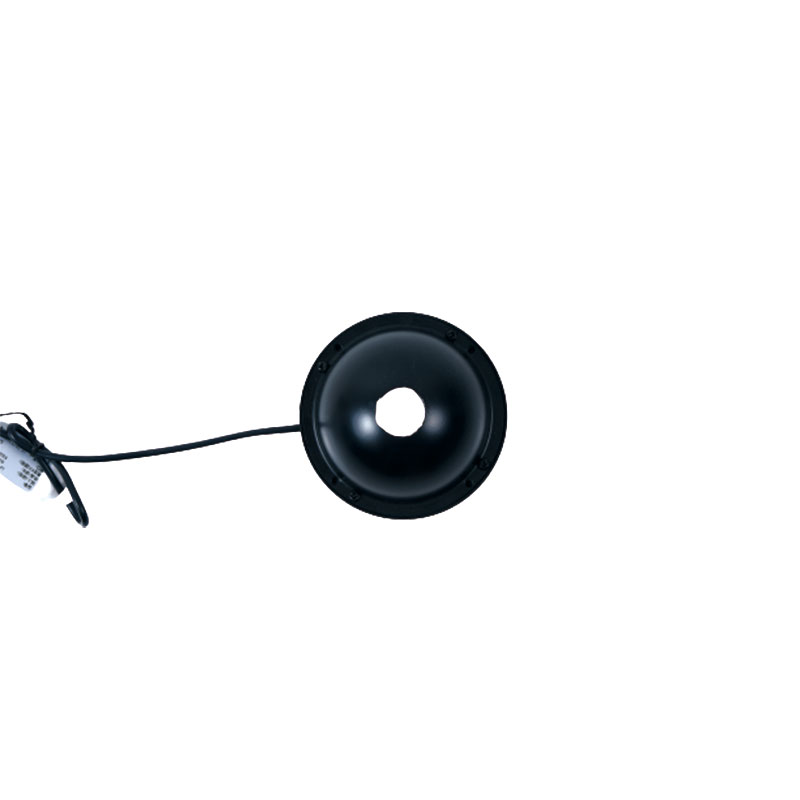

The unique dome design of the HBD series enables it to radiate a uniform spread light through the diffusion panel.

1.Product features

The HBD series dome light is a diffuse reflection shadowless light source. After the light emitted by the LED is diffusely reflected by the inner spherical surface, it emits a smooth and uniform light that can illuminate the measured object in all directions.

2.Configuration example

The CCD captures the characteristics of the measured object through the hole in the dome.

* This picture is shown as a sketch only.

Sectional view of a dome light

Configuration example

3.Model name explaination

4.Product list

Model name	LED color	Voltage	Power		Weight	Output connector
Model name	LED color	Voltage	●	●●●	Weight	Output connector
LS-HBD-91	●●●●	24V constant-voltage	3.5W	5.5W	0.1kg	SM 2.54 3Pin
LS-HBD-116	●●●●		5W	8W	0.2kg
LS-HBD-166	●●●●		6.5W	14.5W	0.3kg
LS-HBD-216	●●●●		9.5W	15W	0.5kg
LS-HBD-266	●●●●		12W	18.5W	0.6kg
LS-HBD-424	●●●●		20.5W	32W	1.4kg

*** Subject to actual product***

5.Applications

1.Inspecting prints on paper box

2.Inspecting electronic components

3.Inspecting the uneven surface of workpiece

4.Inspecting the reflective surface of the object like metal and glass

6.Application example

Bright metal detection


Measured object	Configuration	Effect image

7.Service

Color temperature/ Peak wavelength	● 620nm-630nm ●460nm-475nm ●520nm-530nm
Color temperature/ Peak wavelength	●3200K-7000K
Operating temperature and humidity	a.Temperature 0-40°C
Operating temperature and humidity	b.Humidity: 20%-85% (with no condensation)
Service life	Lighting decay 5% per 30,000hrs
Accessories	a.Extension cable
Accessories	b.Constant-voltage control unit
Customization	a.Customizing emitting surface size and dimension
	b.Customizing color temperature, illuminance, peak wavelength
	c.Customizing output connector, input voltage, drive mode.
	d.Customizing diameter, number and position of camera hole
	e.Customizing bi-color or multiple combined lights
Warranty	One year product warranty and provide technical support

8.Spectrum, uniformity

Spectrum	Uniformity（LS-HBD-116）

9. Dimensions(mm)

Model name	Unit (mm)
Model name	A	B	C	D	E	F
LS-HBD-91	91	20	SR37.5	45.3	41	82
LS-HBD-116	116	25	SR49.7	54.4	66	106
LS-HBD-166	166	35	SR75	74.1	116	155.5
LS-HBD-216	216	40	SR99	100	166	204
LS-HBD-266	266	50	SR122.5	106	210	254
LS-HBD-424	424	80	SR196.5	203	360	410

***The size of the light source can be customized***
