AC Constant-voltage Color Temperature/Brightness Digital Contr (MTR)

Yuyao Lishuai Machine VISION Technology Co., Ltd

Intelligent monitoring, real-time alarm, precise control.

1. Product features

The MTR series automatic calibration control units are constant voltage driven. They use LCD display, 2000-level brightness adjustment, 3200K-6500K color temperature stepless adjustment, real-time monitoring of the color temperature and brightness of the light source. The two channels of the control units can independently control and monitor alarms. They support CL-200A real-time correction, and support data storage after power off. They are compatible with triggering strobe and communication.

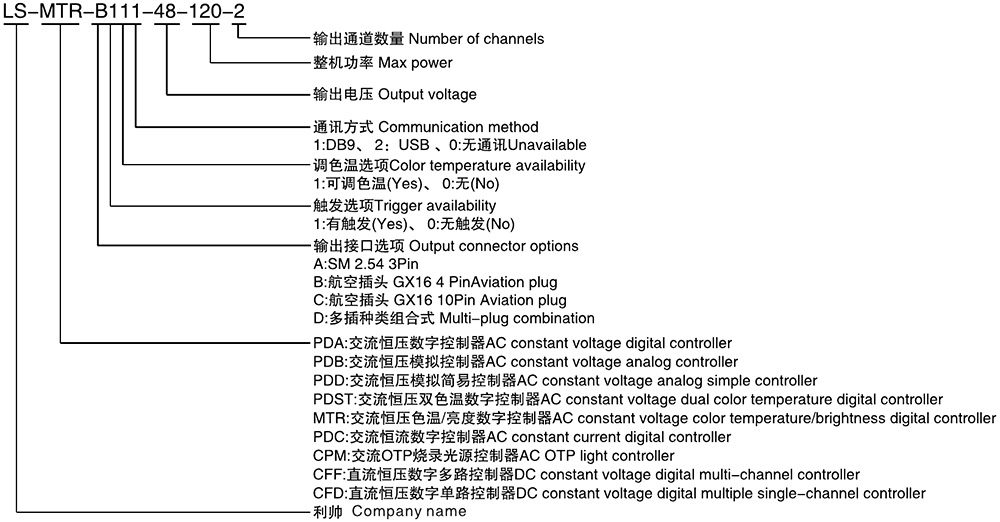

2. Naming rule

Complete model	Abbr. Model
LS-MTR-B111 -48-120-2	MTR-2CC

3. Product specifications

Model name	MTR-2CC
Input voltage/Frequency	AC 100～240V 50/60HZ
Lighting method	Continuous lighting/Strobe lighting
Number of channels	2 channels
Drive method	Constant-voltage system
Rated capacity	120W max (50W max per channel)
Lighting mode setting	Manual/External
Color temperature	3200-6500K	Customizing color temperature, intensity
Brightness Range	0-2000LUX
Output connector	(48V LIGHT ) GX16 4-pin
External control connector	Sensor Communication	(SEN ) S Terminal MD4
	CL-200A Calibration Communication	(CALIBRATIONCL-200A ) USB
	PC Communication	(EXTERNAL CONTROL ) RS-232
PWM frequency	33 KHz
Applicable light units	Lighting with input DC 48V, constant-voltage driving system
Operating temperature and humidity	Temperature: 0 to 40°C,Humidity: 20% to 85% (with no condensation)
Cooling method	Natural cooling
Installation method	Naturally placed
Material and surface processing	Aluminum alloy, surface electrophoresis
Weight	1.2Kg
Included accessories	AC power cord 1.2m，Instruction manual

4. Service

Accessories	a.DC extension cord	c.External trigger cable
	b.AC power cord	d.Communication Cable
Customization	a.Communication Cable, DC extension cord, External trigger cable, length can be customized
	b.Output and input interface can be customized
	c.Power/Voltage can be customized
Warranty	One-year warranty and technical support

5. Dimensions (mm)

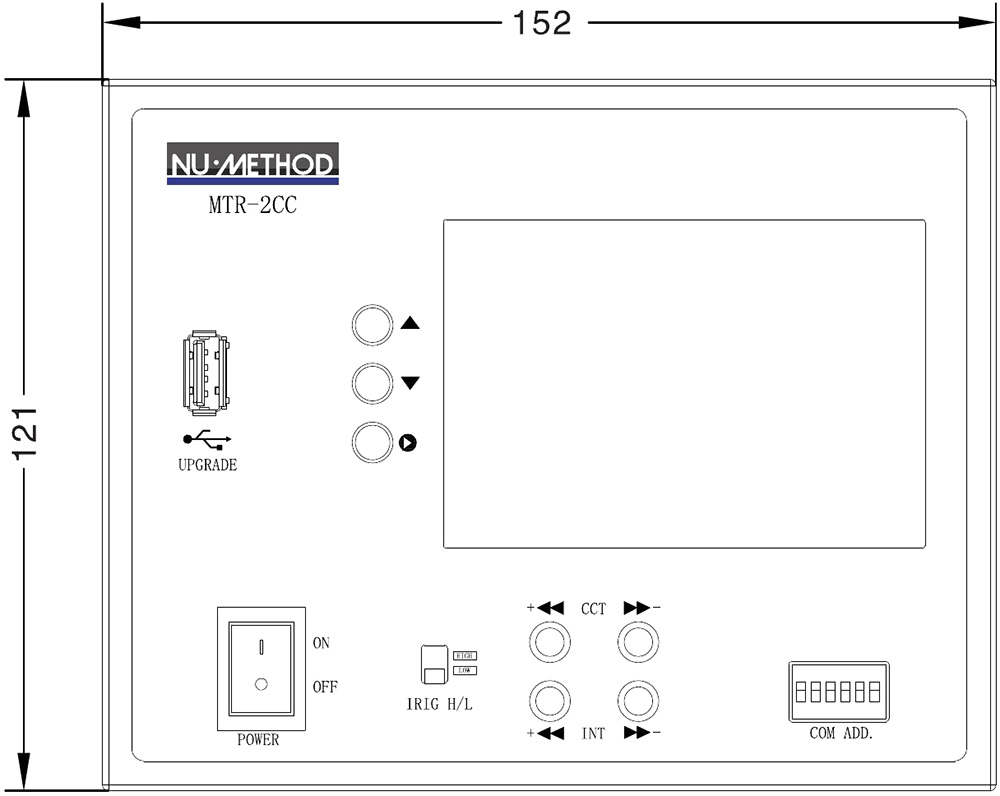

MTR-2CC Front view

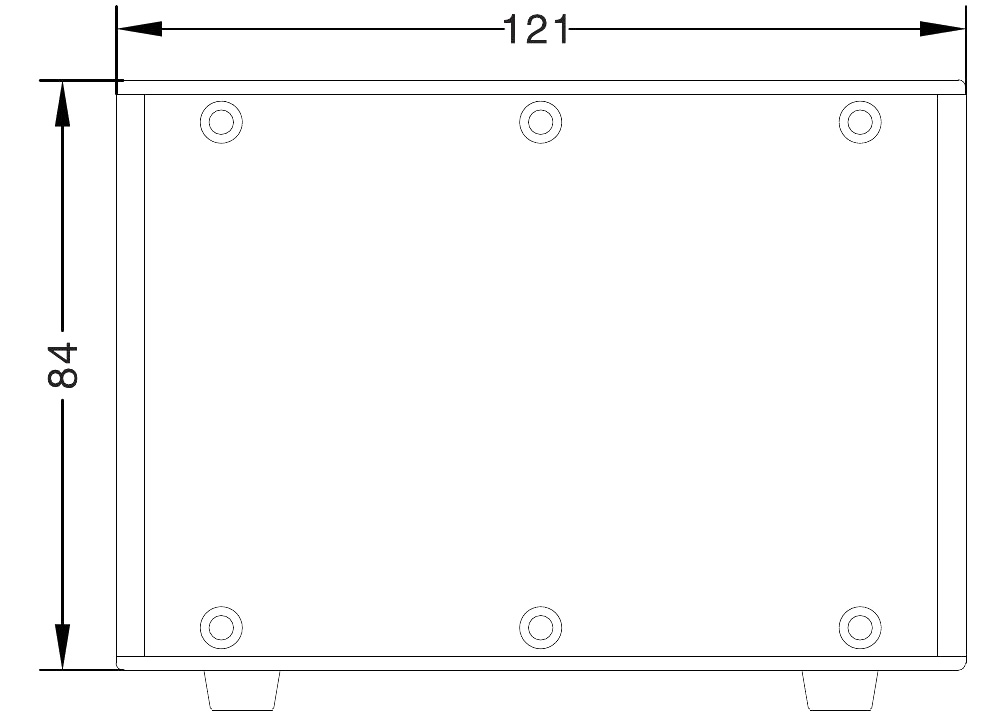

MTR-2CC Side view

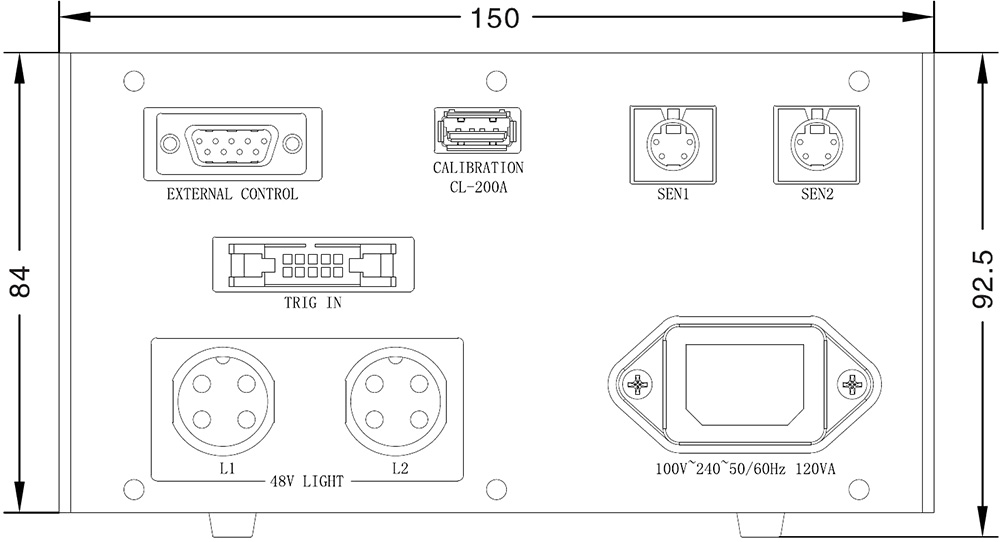

MTR-2CC Top view
